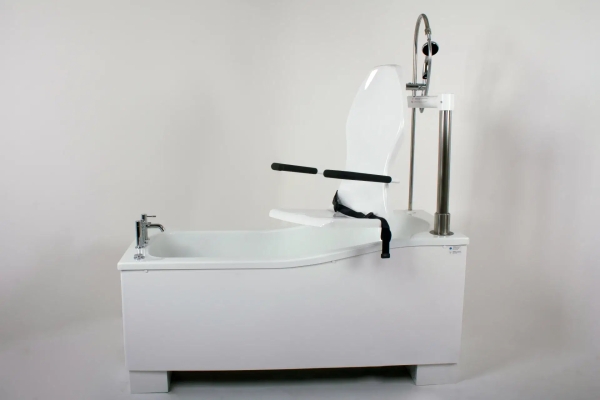

Astor Compact Pure Height Adjustable Bath

Click an image to enlarge

Features

• Custom-engineered height-adjustable design to reduce physical strain on carers
• Integrated powered transfer seat with secure lap strap and nursing arms
• Cat 5 compliant with Kiwa KUKReg4 approved gantry and TMV3 temperature regulation
• Delivered fully assembled and ready for simple installation by your own team
• Robust construction for high-use environments with superior hygiene performance
• Fast 7-day availability from order for urgent replacement or installation needs

Designed for Care Environments
The Astor Compact Pure Height Adjustable Bath is a premium assisted bathing solution optimised for care homes, supported living settings, hospices, and multi-user facilities. Built for durability and ease of use, it addresses both resident comfort and caregiver ergonomics with a height-adjustable bath tub that supports safe and efficient bathing workflows.

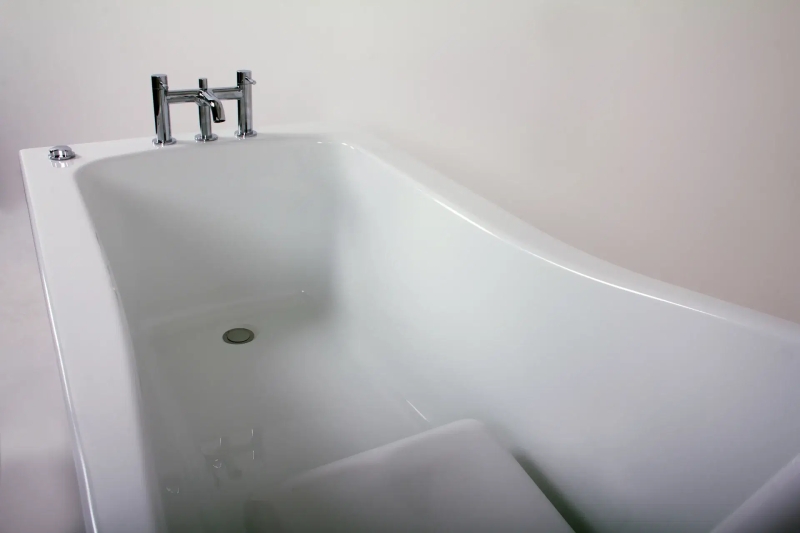

Unique internal contours deliver a spacious yet supported bathing experience, while smooth surfaces promote effective cleaning and superior infection control. The powered seat is integrated into the unit to provide reliable transfer capability, with thoughtful design to optimise access for carers.

Comfort, Safety and Ease of Use
Safety and usability are central to the Compact Pure’s design:

Obstruction-sensing powered seat with secure lap strap and nursing arms for confident transfers
Height adjustment range supports ergonomic working heights for carers and better resident comfort
Separate TMV3-regulated tap and shower temperature controls for safe bathing
Kiwa KUKReg4 approved components and showersafe gantry for backflow protection and compliance confidence
Ready for rapid integration into existing care spaces with minimal installation effort

Technical and Customisation Details

Height adjustable range (tub): approx. 680 mm to 980 mm
Seat height range: approx. 425 mm to 925 mm
Gantry height range: approx. 1,905 mm to 2,205 mm
Bath length: 1,700 mm; width: 750 mm (1,409 mm with seat deployed)
Maximum working loads: tub 280 kg; seat 125 kg
Built from durable acrylic, ABS, GRP, mild and stainless steels for longevity and ease of maintenance

Reliable Performance and Hygiene
Designed for frequent use in demanding environments, the Compact Pure delivers dependable performance backed by quality construction and conformity to care standards. Smooth internal shapes support hygiene control and easier cleaning between uses, reinforcing suitability for busy communal facilities.

Elegant, Practical Assisted Bathing
Whether replacing an existing bath on short notice or upgrading your care facility’s bathing provision, the Astor Compact Pure combines operational practicality, safety, and resident comfort in a ready-to-install solution. Its balance of customisation, compliance, and robust performance reflects Astor Bannerman’s commitment to effective assisted care solutions.
