Astor Compact Plus

Click an image to enlarge

Features

• Height adjustable design to minimise carer handling strain
• Safe transfer into the bath with integrated powered seat system

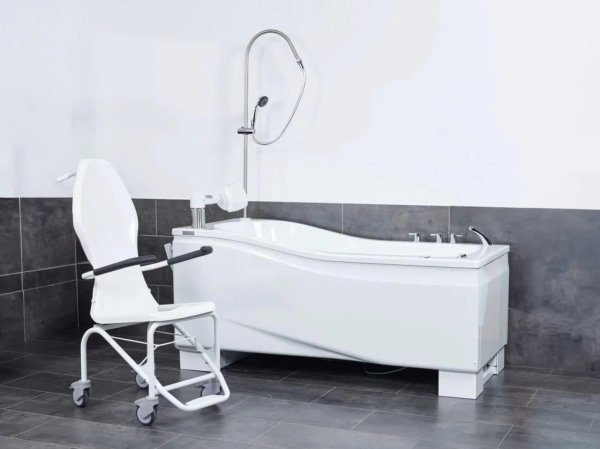

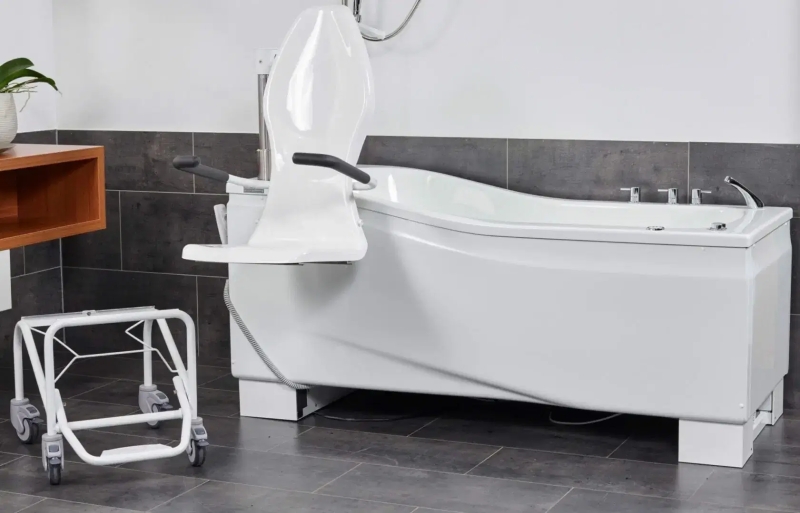

• Optional detachable seat with transfer trolley for room-to-bathroom movement
• TMV3 temperature regulation with Kiwa KUKReg4-approved Showersafe gantry for safety
• Robust construction with multi-layer GRP panels and high-grade stainless steel components
• Available in 1600 mm or 1700 mm lengths to fit varied bathroom spaces

Designed for Care Environments

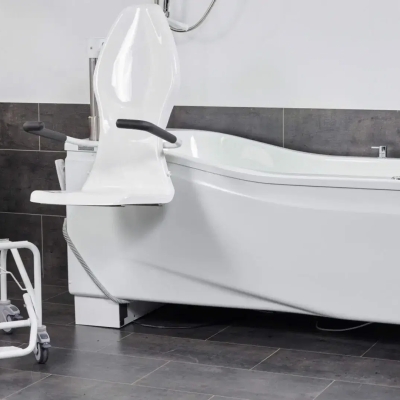

The Astor Compact Plus Height Adjustable Bath is a feature-rich assisted bathing solution tailored for care homes, supported living environments, and multi-user facilities. Its height-adjustable design reduces physical strain on caregivers while enhancing comfort and accessibility for residents. A thoughtfully engineered internal shape delivers a spacious yet supported bathing experience, and the smooth contours support effective hygiene maintenance.

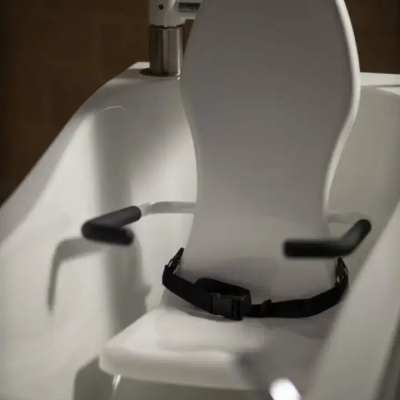

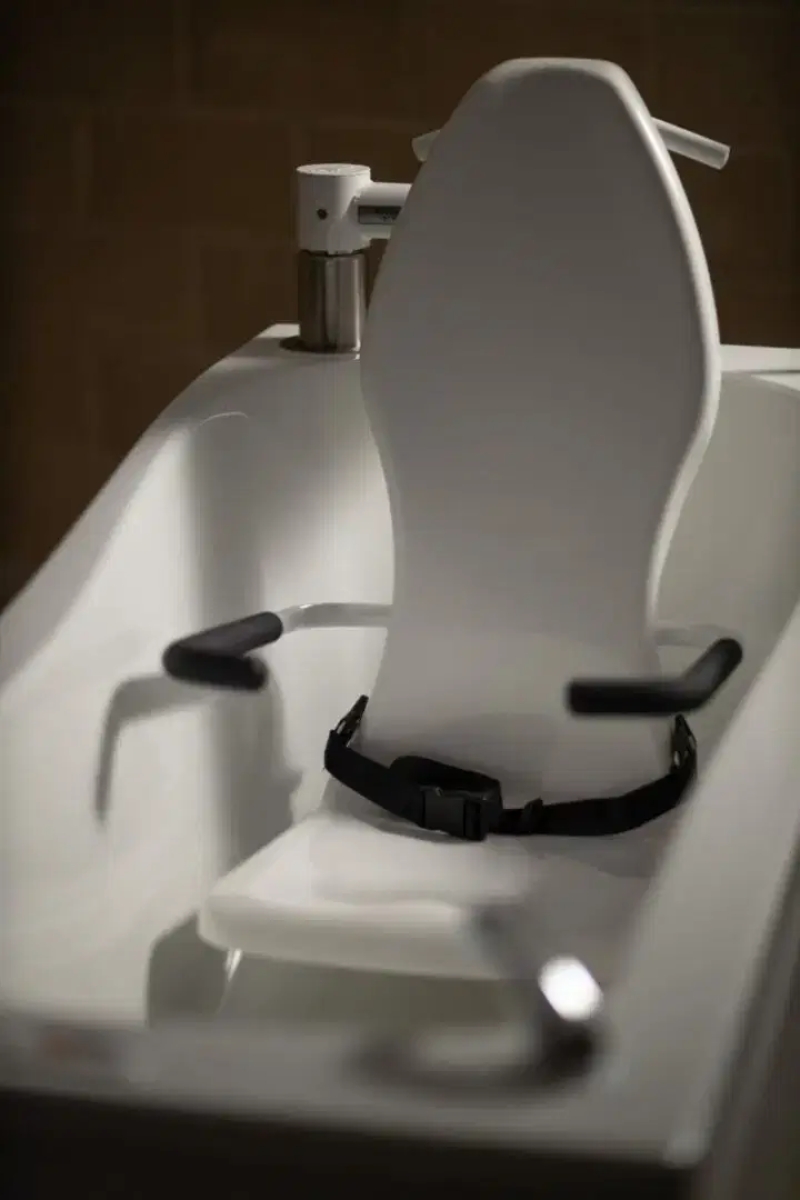

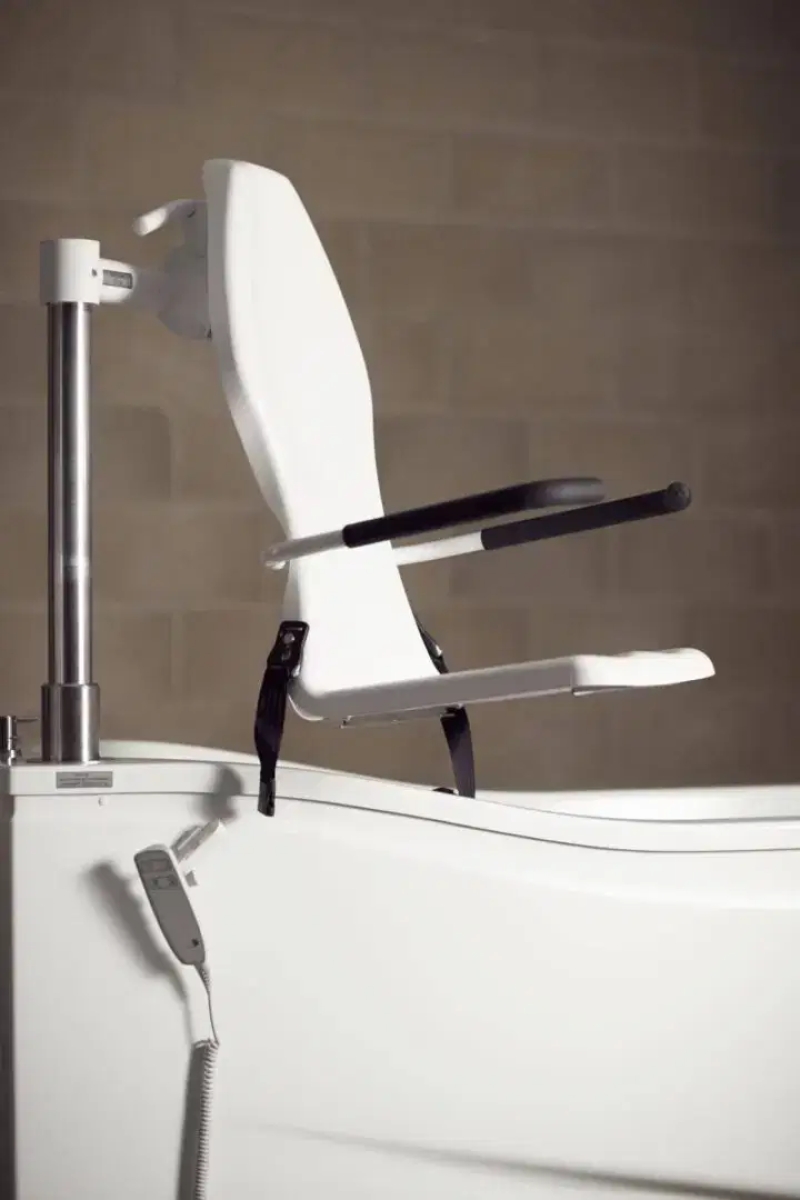

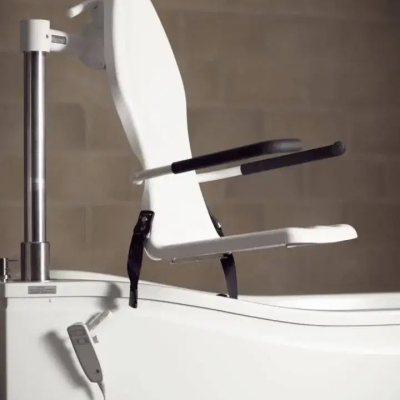

The integrated powered seat system assists safe and dignified transfers into the bath. With a secure lap strap, nursing arms, and obstacle sensors, transfers are controlled and comfortable. For greater versatility, the seat is detachable, and a transfer trolley is available to support smooth movements from bedroom to bathroom.

Comfort, Safety and Ease of Use
Safety and usability are central to the Compact Plus’s design:

Obstruction-sensing powered seat with lap strap and nursing arms for confident transfers

Height adjustment range supports ergonomic working postures for carers

TMV3 regulated water delivery to prevent scalding

Kiwa KUKReg4-approved Showersafe Gantry provides fluid backflow protection to Category 5 level

Options include air spa systems, Bluetooth sound, LED lighting, and commode seat configurations

Technical and Customisation Details

Length options: 1600 mm or 1700 mm
Width: 750 mm; Width with chair extended: approx. 1420 mm
Height adjustment range: approx. 780 mm to 1080 mm
Seat maximum load: up to 150 kg
Maximum working load: up to 508 kg (product, user, water)
Robust GRP panels and 304 stainless steel elements for longevity and easy maintenance

Reliable Performance and Hygiene
Built to deliver long-lasting performance in demanding care settings, the Compact Plus supports rigorous hygiene control with its smooth internal surfaces and durable materials. The modular design plus optional extras make it practical for a wide range of resident needs.

Elegant, Practical Assisted Bathing
Whether upgrading bathing provision or meeting strict compliance standards, the Astor Compact Plus Height Adjustable Bath combines operational practicality, safety, and resident comfort. Its balance of customisation, compliance, and performance reflects Astor Bannerman’s commitment to effective assisted care solutions.
